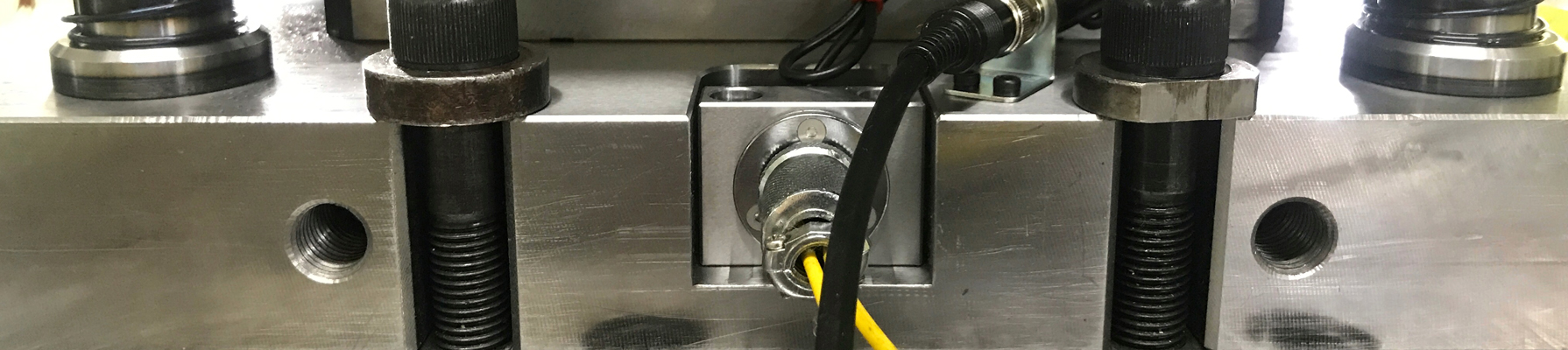

Inelta Displacement Sensors with External Screw Thread
LVDT stands for Linear Variable Differential Transformer. The LVDT is an analogue and non-touching sensor with one primary and two secondary spools. With the linear movement of the tappet, an electrical signal is produced. Attached to the tappet, there is the ferromagnetic core. The core induces tension into the secondary spools.
The core inside the LVDT is attached to the pushrod, which is directly connected to the measured application.
Armature unguided: The armature is attached to the application, but still moves free inside the LVDT. The correct axial alignment is important. The pushrod moves without any contact.
Armature guided: A guided armature is guided using a maintenance-free bearing.
Armature as a taster function: The pushrod is guided using maintenance-free bearing. It is pushed out with an integrated feather.
Armature on both sides: The armature can come out of the back of the LVDT. This makes sense especially in very dirty environmental conditions, so the dust cannot settle inside the housing. According to that, this serves the mechanical protection when the application takes a bigger mechanical way that the displacement

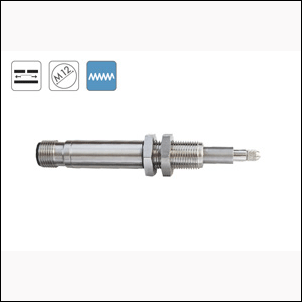

LVDT-IMAT. LVDT displacement sensor with spring-loaded probe and M12 external thread for easy mounting and adjustment at the point of installation. Connection via M12 connector or connection cable possible.

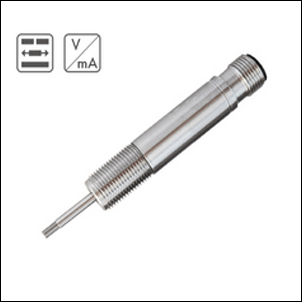

LVDT-IMDL. LVDT displacement sensor with M12 external thread and integrated signal conditioner, for easy mounting and adjustment at the point of installation. Suitable for demanding environmental conditions due to its robust design.

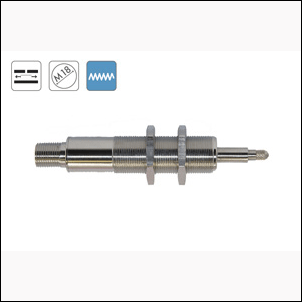

LVDT-IGAT. LVDT displacement sensor with spring-loaded probe and M18 external thread, for easy mounting and adjustment at the point of installation. Connection via M12 connector or connection cable possible

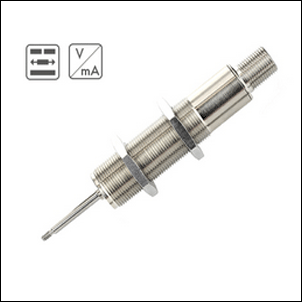

LVDT-IGDL. LVDT displacement sensor with unguided armature and integrated signal conditioner as well as M12 external thread for easy mounting and adjustment at the point of installation. Connection via M12 connector or connection cable possible. LVDT-IGDT. LVDT displacement sensor with spring-loaded probe and integrated signal conditioner as well as M18 external thread for easy mounting and adjustment at the point of installation. Connection via M12 connector or connection cable possible
