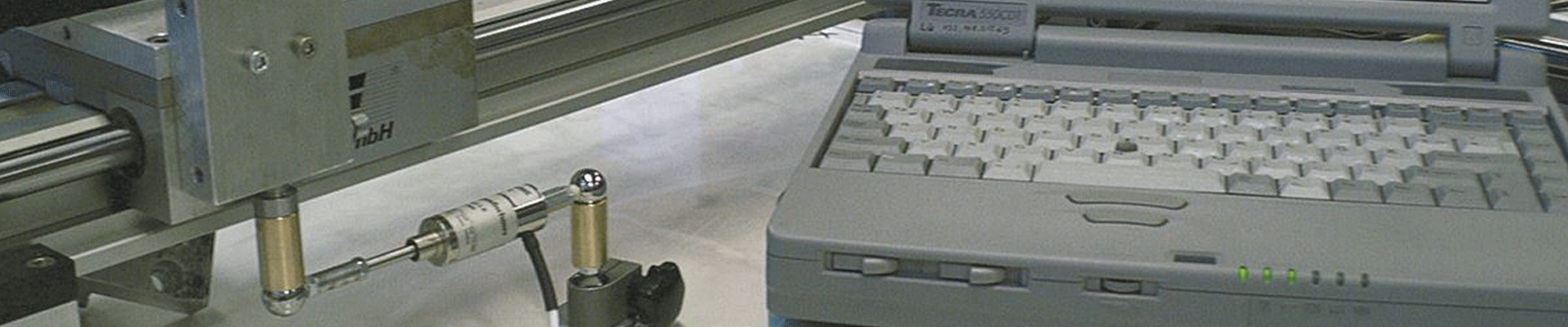

LVDT stands for Linear Variable Differential Transformer. The LVDT is an analogue and non-touching sensor with one primary and two secondary spools. With the linear movement of the tappet, an electrical signal is produced. Attached to the tappet, there is the ferromagnetic core. The core induces tension into the secondary spools.
The core inside the LVDT is attached to the pushrod, which is directly connected to the measured application.
Armature unguided: The armature is attached to the application, but still moves free inside the LVDT. The correct axial alignment is important. The pushrod moves without any contact.
Armature guided: A guided armature is guided using a maintenance-free bearing.
Armature as a taster function: The pushrod is guided using maintenance-free bearing. It is pushed out with an integrated feather.
Armature on both sides: The armature can come out of the back of the LVDT. This makes sense especially in very dirty environmental conditions, so the dust cannot settle inside the housing. According to that, this serves the mechanical protection when the application takes a bigger mechanical way that the displacement

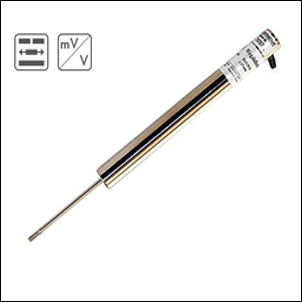

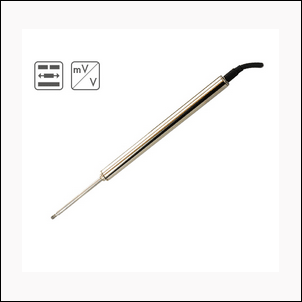

LVDT-ISAL. LVDT with unguided armature, high accuracy and almost infinite resolution. Optionally, the sensor can be paired with armatures of different lengths (core extensions).

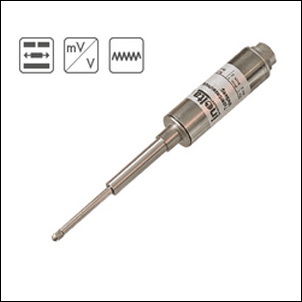

LVDT-ISAT. LVDT with spring loaded and guided probe. Robust sensor made of stainless steel, suitable for applications that require reliable sensor performance in demanding environments.

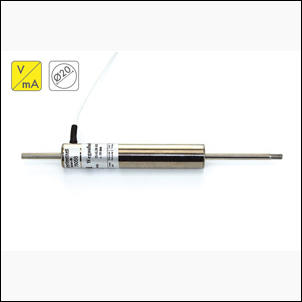

LVDT-ISDL. Displacement sensor with unguided armature and integrated signal conditioner. Optionally, the sensor can be paired with armatures of different lengths (core extensions)

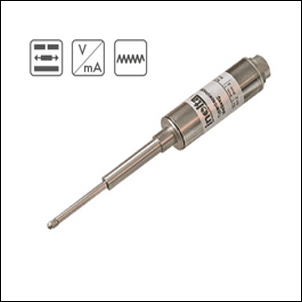

LVDT-ISDT. LVDT with spring loaded and guided probe and integrated signal conditioner. Robust sensor made of stainless steel, suitable for applications that require reliable sensor performance in demanding environments

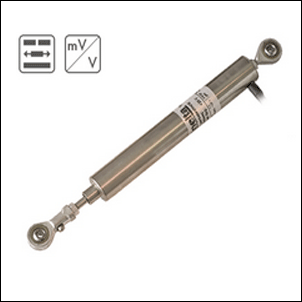

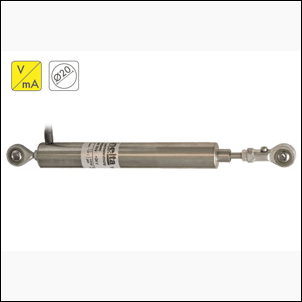

LVDT-ISDG. Displacement sensor, LVDT with bearing guided armature, swivel head with spherical calotte, high accuracy and almost infinite resolution. A signal conditioner is integrated

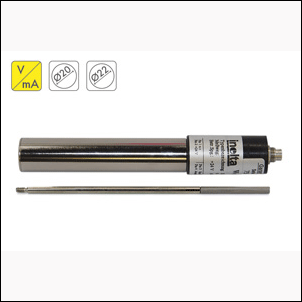

LVDT-IEDL. LVDT displacement sensor with unguided armature and integrated signal conditioner. This version was designed for standard applications where the price-performance ratio is important.
